Favorites — Domain-Control Data-Gap Analysis

Scoping of the Favorites screens — the "My Favorites" list and its condensed variant. Documentation only.

Figma file R6hPjBdjSIn6946qTJasUC · nodes 5287:15227 (favorites) · 5287:15454 (favorites-list). Source: Figma MCP + codebase (RestService — thorough) · Branch docs/set-5287-data-gap.

Favorites (5287:15227)

Favorites — list (5287:15454)

1 · Screens & controls

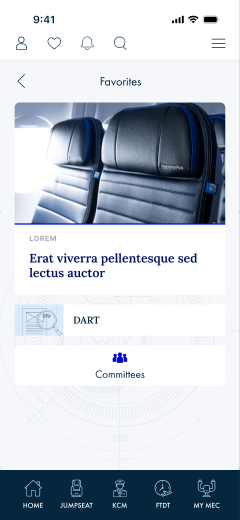

• Favorites (5287:15227) — title "Favorites"; the member's favorited items rendered by their native control: a card-lg (favorited document/content), a card-sm (favorited nav tile, e.g. DART), a card-btn (favorited button, e.g. Committees). Heterogeneous list.
• Favorites — list (5287:15454) — the same favorites as a condensed Master Form Field row list (title + » → item).

2 · Data-source mapping

3 · Gap & refinement to Change 3

This set confirms and refines the Favorites capability ask:

• Heterogeneous by design — a favorite can be a document (card-lg), a nav tile (card-sm), or a button (card-btn). So the favorites store keys on (itemType, itemId), exactly as proposed.
• Read must support rendering — the Favorites screen has to draw each item with its native control, so the favorites read either (a) returns enough to hydrate each item, or (b) returns (itemType, itemId) and the client hydrates from the per-type sources (DocumentItem, MenuItem, …). Confirm which approach (hydrated payload vs ID-only + client hydrate).
• Two presentations, one source — the rich view and the condensed list bind the same favorites set.
• Ordering / unfavorite — confirm an order field and the toggle-off path (the heart elsewhere adds; this screen removes).

4 · Summary

• Backend gap: Favorites capability (Required API Change 3) — read + toggle, keyed on (itemType, itemId). This feature is blocked on it.
• Confirm: hydrated payload vs ID-only read · ordering field.
• Presentation: reuses existing controls (card-lg · card-sm · card-btn · Master Form Field row) — no new scaffolds.

Tracked in screen-mapping.html; backend ask in backend-api-mapping-report.html §5 Change 3.

5 · Resolution (2026-07-08)

• Hydrated vs ID-only (§3 open question) — resolved: ID-only + client hydrate. The delivered GetFavorites response returns id/userId/itemTypeId/itemTypeDescription/itemId/sortOrder/title/ audit fields only — not a hydrated payload. The client (FavoritesViewModel.HydrateAsync) joins itemId against IDocumentsQueries/IMenuQueries to build the card-lg/card-sm view models.
• Ordering (§3 open question) — resolved. sortOrder is a real field on the delivered Favorite record.
• Item types — confirmed, no "button" type. The delivered contract has exactly three item types: 1=Menu Item, 2=Document Item, 3=Notification Center Message. There is no distinct backend "button" type — card-btn vs card-sm for a Menu Item favorite is a Figma-curated presentation choice, not data-driven; v1 renders all Menu Item favorites as card-sm uniformly (flagged as a follow-up once a concrete signal exists to key the split off of). (Extended 2026-07-16: type 4=Document Category added client-first — D62, backend handoff Task AB#2271; raw id {scope}|{categoryKey}, hydrated from the GetDocuments tree. The live API must accept type 4 before the mock→live flip. The wire ItemId convention is now codified as FavoriteKey's composite {typePrefix}-{rawId} — menu-/doc-/ msg-/cat-, matching the backend's production rows; parsing splits on the first dash only (GUID raw ids contain dashes) and legacy un-prefixed values pass through unchanged, degrading to a failed lookup rather than a crash.)
• Unfavorite/remove — implemented. RemoveFavoriteAsync(itemTypeId, itemId); the heart on the Favorites screen itself is the remove control (no separate confirm step), matching "this screen removes."
• Heterogeneous rendering — implemented via HeroCard (Document → card-lg) and CardSmall (Menu Item → card-sm); Notification Center Message favorites render as a title-only row (no card component exists for that type). The condensed Master Form Field list view (5287:15454) was not built in this pass — only the rich view shipped.
• New: item-unavailable fallback. Not anticipated by the original gap analysis — if a favorited item's backing content no longer resolves (deleted document, removed menu item), the row still renders (title-only, from the favorite record) but routes to Off the Radar on tap instead of a dead link.
• New: favoriting is auth-gated end-to-end. The heart affordance across the card library (Card/CardSmall/HeroCard/ButtonCard) only renders when IAuthentication.IsLoggedIn — not shown-disabled, genuinely absent from the DOM when logged out — and /favorites itself redirects to /login if visited unauthenticated.
• Tester Walkthrough available. See the Favorites Tester Walkthrough for a screenshot-illustrated, scenario-by-scenario smoke test covering the full add/view/remove/dead-link loop.
• Live-validation status (2026-07-09). Walkthrough executed end-to-end on the iOS simulator. Confirmed in mock mode: auth-gated heart rendering (zero heart elements in the DOM logged out), /favorites → /login redirect, document-favorite add / persist / remove, empty state, and the Off the Radar page (route, blank-fill copy, back-to-/favorites chevron). Live mode is not yet exercisable: GET /v2/api/mobilecontent/favorites (and …/itemtypes, POST) return 404 on the production gateway — the MobileMenu.ApiClient 1.0.7 package is delivered but the service isn't reachable there yet, and the resulting ApiException propagates unhandled out of FavoriteToggleContext.LoadAsync, killing the Home Preview page (hardening fix queued). Superseded 2026-09-18: the 404 is a 2026-07-09 observation against gateway.alpa.org; on gatewayapi.alpa.org — the host this branch reads in Production mode — favorites and favorites/itemtypes are live (matched on both hosts 2026-08-28 per wiki/GATEWAY-ENDPOINT-COMPARISON-2026-08-28.md; 200 with 14+ item types 2026-09-18), so Live mode is exercisable. Also found: menu-item hearts silently no-op when the rendered menu items carry no SpecialCode (offline-fallback menu list; fixed same day). Later that day Home Preview's menu quick-list rows were replaced by document category rows (2026-07-09 direction) — menu-item favorites still render on the Favorites screen, but the app currently has no surface to add one; the walkthrough's Check 4 is parked until a screen with saveable menu items ships.

6 · Committee volunteer / LEC rep favorites (2026-09-11)

• New item type, client-first. PR 2423 (AB#2716/AB#2719) added FavoriteItemTypes.Contact = 12 for committee volunteers and MEC/LEC representatives, same "shipped ahead of the backend, gated by FavoriteToggleContext.Supports" precedent as DocumentSet above. Verified live 2026-09-11/12: the backend already registers {"id":12,"description":"Contact"} on GET /favorites/itemtypes in production, and a committee-volunteer row round-trips (POST 201 / DELETE 204) end to end. Representative rows (LEC Chair/Vice Chair/Secretary-Treasurer) carry no stable id on the client yet and correctly render no heart — see the Tester Walkthrough Check 10.
• Confirmed gap: the heart-gating chokepoint (ContactList.razor) skips FavCtx.ShowHearts/FavCtx.Supports. Every other card type's heart renders through ComponentView.CanFavorite, which requires both the member to be logged in with a successful favorites load (ShowHearts) and the backend to currently register the item type (Supports). ContactList.razor — the shared component every contact-favoriting caller (LecRosterPage, Stack.razor.cs) renders through — only checks that the row has a delegate and a non-empty id. Currently harmless (the backend does register type 12), but if a favorites load fails or the backend ever drops the type, contact hearts would keep rendering and failing on every tap instead of disappearing like every other card.
• Critical, found 2026-09-12, AB# pending: favorite/heart state leaks across a same-device account switch. FavoriteToggleContext caches a member's favorites for the life of the app process and is never invalidated — its own Invalidate() method has zero call sites anywhere in the repo, and Authentication.RunLogOutTaskAsync clears other session-lifetime singleton caches (IThemeCoordinator, IDynamicFeedQueries) on logout but not this one. Live-reproduced: Member A logs in, favorites the My MEC tile; Member A logs out via Profile → Log Out (no force-quit); Member B logs in on the same running app — Member B's own My MEC heart renders filled immediately (confirmed via DOM class inspection, zero new /favorites network calls on Member B's login), and tapping it to "remove" it fires a DELETE against Member B's account for an item that was never favorited there, which 404s and leaves the heart stuck filled until the app is force-quit. Root cause is unrelated to the Contact type itself — any favoritable content is affected — but was found while validating this PR. Fixed 2026-09-12, AB#2734 — FavoriteToggleContext is now registered AddSingleton (was AddScoped, which is why the first fix attempt — adding Invalidate() to RunLogOutTaskAsync alone — had no effect until this correction) and is invalidated on logout alongside IThemeCoordinator/IDynamicFeedQueries. See Tester Walkthrough Check 11 (now a regression check, confirmed passing) and the multi-dimension code review this finding came out of for the other related gating/lifecycle findings from the same review pass (PR 2426).
• Also found, same review pass: a reachable crash. ItemComponentFactory copies a feed-declared FavoriteItemTypeId onto a ViewModel unfiltered. The backend's item-type registry already lists types (5, 6, 9, 10, 11, 13, 14, 15 — KCM Airport/Airline, Jumpseat Policy/Airline, Event, Hotel, Committee, Country) that FavoriteKey.Prefixes does not cover, so FavCtx.Supports would allow a heart to render for one, but tapping it throws an uncaught NotSupportedException out of FavoriteToggleContext.ToggleAsync — which kills the Blazor circuit per that class's own documented failure policy. Not reachable today (no current adapter declares those types), but reachable the moment a CMS author publishes feed content that does, with no code change needed on the client.

7 · Documents list favorite gaps (2026-09-13)

Found chasing down an observation from the AB#2734 post-merge validation pass: the /documents browse path showed no hearts anywhere. Two distinct, independently-tracked gaps, both fixed same day.

• AB#2721 — individual document rows inside a category, no heart at all, any scope. DocumentsListPage.razor's category-drill-down branch rendered each document through the plain List component, which per D31's own 2026-07-08 implementation note was explicitly never wired for favorites ("flagged as a remaining gap, not silently dropped"). A complete fix already existed on an unopened, stale branch (fix/AB2721-doc-favorites-hearts-01, authored 2026-09-10) — migrates the branch onto DocumentsBrowser (Mode=DocumentList, Presentation=DatedRows), the same building block a MEC hub's own "Latest Documents" section already rides, so the row picks up DocumentsBrowser's already-working cascaded FavoriteToggleContext wiring for free. Rebased onto the AB#2734 fix (22 commits behind, no conflicts) and opened as a PR for the first time. Live-verified: heart renders, POST 201 itemTypeId 2 "Document Item", appears on Favorites, removes via DELETE 204, row-body tap still opens the real document.
• AB#2738 — the plain (non-MEC-hub) category list, no heart at all. A distinct gap one level up: DocumentsListPage.razor's category-picker branch (Documents reached with no MEC context, e.g. plain scope ALPA) built a bare CardSmallViewModel with only Title/Link set — no favorite identity at all — even though CategoryCardFactory (the adapter Home Preview's own category rows already use) existed and was directly reusable. The AB#2721 branch's own commit explicitly disclaimed this level ("these rows are categories, not documents"). Fixed by wiring CategoryCardFactory.Create(cat) plus ComponentView.CanFavorite (reused directly, not re-implemented) into that branch. DocumentsBrowser's own CategoryGrid mode was considered and rejected for this branch specifically — it requires a single Scope, and this list spans every scope when none is given. Live-verified: heart renders, POST 201 itemTypeId 4 "DocumentSet", appears on Favorites, removes via DELETE 204.

Tester Walkthrough: Check 4b (updated) and Check 12 (new).
