FTDT Duty Period Forms — Design Gap

Work item AB#2450 Epic AB#1821 Status Awaiting design

The gap

No dedicated add- or edit-duty-period screen exists in any of the four known Figma files. The Design-Source Gap Inventory live-verified this: search_design_system for “add duty period” surfaces only the generic card-duty period component and the generic Master Form Field set — components, not a form screen.

The legacy app has no single add/edit page either: the forms are sub-variants of FTDTDutyPeriodBasePage, a 500+ line templated base class serving FTDTAugmentedDutyPeriodPage, FTDTUnAugmentedDutyPeriodPage, FTDTSplitDutyPeriodPage and the CA variants. Blazor deliberately consolidates those five variant pages into two routes — /ftdt/add-duty-period and /ftdt/edit-duty-period — branching on duty-period type inside one form. That consolidation is itself an undesigned decision: nobody has ruled whether one branching form or per-variant screens is the intended shape.

A citation discrepancy worth reconciling. FTDTDutyPeriodForm.razor's own header comment cites “Figma 4535:14179 — Add Duty Period form” (and FTDTEditDutyPeriod.razor cites the same node's edit variant), yet the inventory's live search found no dedicated add- or edit-form screen. Either the node is one of the generic form-field components the search did surface, or the inventory missed a frame. One of the two records is wrong; resolving which changes whether this page documents a design gap or a citation gap.

What ships today

AspectNative (XAML)Blazor (this build)
Entry path FTDTFlightDutyPeriodListPage → FAB + → FTDTOperationTypeSelectionPage → variant page FTDT dashboard → /ftdt/select-op-type → /ftdt/add-duty-period
Op-type step Separate page, driven by ?Scope= (US/CA); observed live: navigating it without the query renders an empty list titled “Undefined Operation Selection” Separate Blazor page (FTDTSelectOpType.razor), then one form for all types
Form One templated base page, five named variant pages; the US unaugmented path banners “US Unaugmented Duty Period” One form titled “Add @Vm.TypeLabel Duty Period”: Date, Start Time, Time Zone, segments + acclimated row, computed Max DP/Ends section, violation list, rest-rules inputs — variant-specific inputs branch on the duty-period model type
Edit Same variant pages, pre-populated /ftdt/edit-duty-period?Id=… loads the duty period from the local store into FTDTDutyPeriodShell, adding CONCLUDE and DELETE actions with confirm-relabel states

Side by side

Captured 2026-08-12 on an iPhone 17 Pro Max simulator (iOS 26.4), build commit 34737cb4, against live data. Both add flows were opened and backed out of — nothing was saved on either side.

Add form

Native (XAML, shipped today)

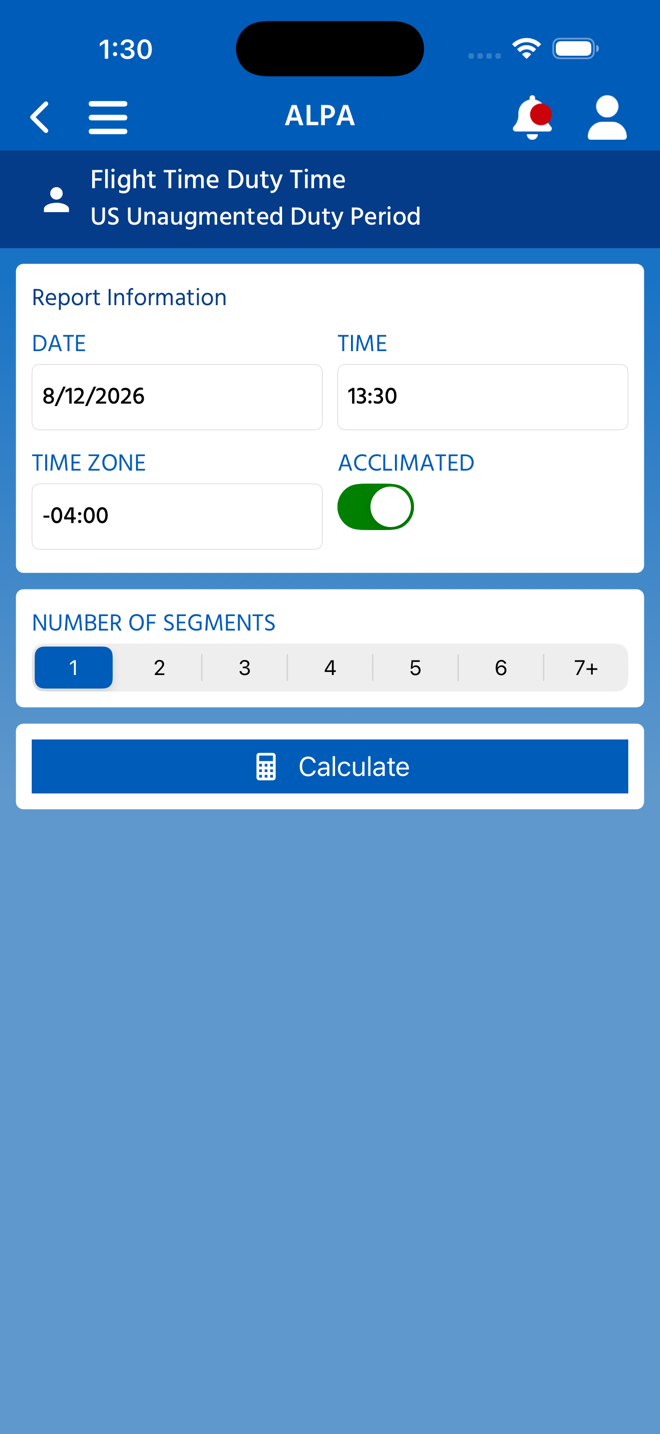

Native XAML US Unaugmented Duty Period add form

FTDTUnAugmentedDutyPeriodPage — one of five variants Reached via FTDTFlightDutyPeriodListPage → FAB + → op-type selection (?Scope=US) → Unaugmented. Banner reads “US Unaugmented Duty Period”. The form is a sub-variant of the 500+ line FTDTDutyPeriodBasePage ControlTemplate.

Blazor (this build, for review)

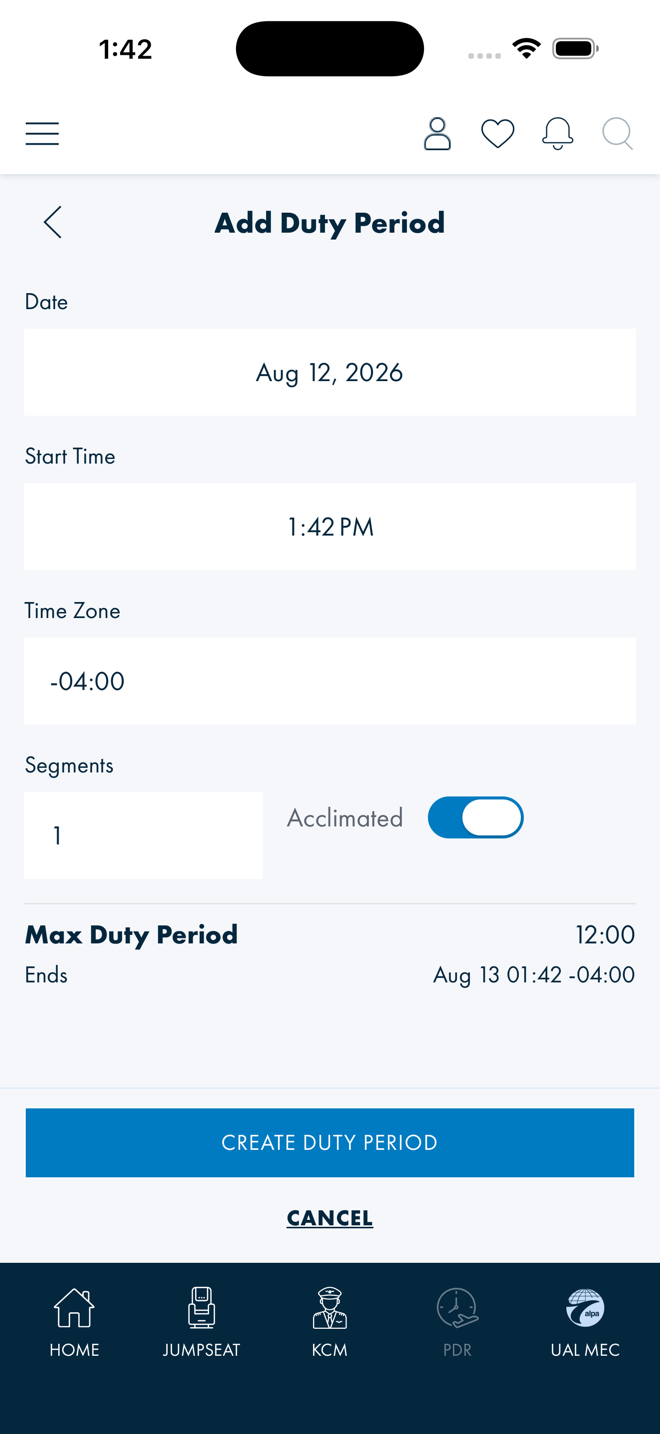

Blazor /ftdt/add-duty-period form — consolidated add duty period form

FTDTDutyPeriodForm — one route for all variants Title reads “Add Duty Period” (with the type label when one is set). Date, Start Time and Time Zone fields, then variant-specific inputs, the computed Max DP/Ends section and the violation list — five native pages folded into one form that branches on the duty-period type.

Edit form — capture blocked

No edit-form capture exists, deliberately. The test account has zero duty-period records, and creating one against the live account is forbidden (no test or seed data in real accounts). The edit form cannot be reached with real data until a capture account or simulator with an existing duty period is available — that is the unblocking condition, and it applies to both native and Blazor sides equally.

What was verified live instead: /ftdt/edit-duty-period without a resolvable id renders its “Edit … Duty Period” title and FTDTDutyPeriodShell's “Duty period not found.” error state — the route exists and fails safely, it just has nothing to show. No compare grid is published for the edit form until a populated capture is possible.

Verification

Walked live on an iPhone 17 Pro Max simulator, build 34737cb4:

native FTDTFlightDutyPeriodListPage -> FAB "+" -> op-type page (?Scope=US) -> Unaugmented -> "US Unaugmented Duty Period" form; backed out, nothing saved native op-type page without ?Scope= -> empty list titled "Undefined Operation Selection" blazor /ftdt/add-duty-period "Add Duty Period" form rendered; backed out, nothing saved blazor /ftdt/edit-duty-period (no record) title + "Duty period not found." edit-form capture: BLOCKED — account has zero duty-period records; creating one is forbidden

The “US Unaugmented Duty Period” banner text is BannerSubtitle in FTDTUnAugmentedDutyPeriodPageViewModel; the “Duty period not found.” string is FTDTDutyPeriodShell.razor's null-duty-period branch — both confirmed in source, not just on screen. The op-type page's Scope dependency is its [QueryProperty("Scope","Scope")] declaration; the “Undefined Operation Selection” title was observed live when navigating without the query.

Open questions

#ForQuestion
1DesignIs one consolidated form branching on duty-period type (the shipped Blazor shape) the intended design, or should the variants (US/CA, augmented/unaugmented/split) each get their own screen as native does? The consolidation was an engineering call; nobody has ratified it.
2DesignDoes the add flow keep operation-type selection as its own screen, or fold it into the form as a first field? Natively it is a separate scope-driven page — and one that renders an empty “Undefined Operation Selection” list when the scope is missing, a state no design covers either.
3DesignHow should computed, non-editable output — the Max DP/Ends section and the violation list — render inside an input form? Today it sits inline between field groups with no designed distinction between what the pilot types and what the calculator returns.
4DesignEdit adds destructive actions: DELETE and CONCLUDE, both using a tap-again-to-confirm relabel (“CONFIRM DELETE”). Is inline relabel the right confirmation pattern for destructive actions, or should these be dialogs?
5EngineeringReconcile the Figma 4535:14179 citation in FTDTDutyPeriodForm.razor/FTDTEditDutyPeriod.razor against the gap inventory's finding that no add/edit-form frame exists. One record is wrong; the answer decides whether a design request is needed at all.
