Member Resources — Domain-Control Data-Gap Analysis
Scoping of the Member Resources screens — a resource nav list and the Submit a Pilot Data Request form. Documentation only; no presentation work.
Headline. The resource list is plain
MenuItem navigation (mapped). The
Submit a Pilot Data Request form pre-fills from Member, but the
submission is scoped to the web application — it was accidentally surfaced in the mobile mock and is
out of mobile scope (no mobile endpoint needed; the screen should be removed/hidden on mobile).
The only mobile follow-up is the Employee-Number prefill source to confirm.

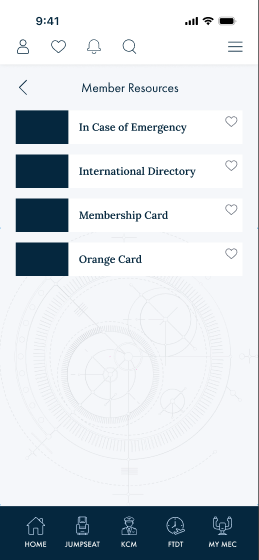

Member Resources (4870:10671)
Submit a Pilot Data Request (4870:10865)
1 · Screens & controls
- Member Resources — title + 4×
card-smnav tiles: In Case of Emergency · International Directory · Membership Card · Orange Card (each → an existing page:IncaseOfAccidentPage/InternationalDirectoryPage/MembershipCardPage/OrangeCardPage). Favorite heart shown (D31, 2026-06-26). - Submit a Pilot Data Request —
toggle-settings(authorization consent) + 4×Master Form Field(Name · Position · ALPA Number · Employee Number) + Submit (Primary) + Cancel (Underline).
2 · Data-source mapping
| Element | Data | Source | Status |
|---|---|---|---|
| Resource nav tiles | title · icon · route | MenuItem → existing pages | mapped |
| PDR · Name | first + last name | Member.firstName / lastName (GetMemberAsync) | prefill |
| PDR · Position | classification | Member.classification | prefill |
| PDR · ALPA Number | member number | Member.memberNumber | prefill |
| PDR · Employee Number | employee # | — (not on Member; PDR is web-scoped) | moot · web |
| PDR · authorization | consent flag | form state | client |
| PDR · Submit | create request | web application (not mobile) | web-scope |
3 · Gaps & confirms
| # | Item | Note | Status |
|---|---|---|---|
| 1 | PDR submission | Scoped to the web application — accidentally surfaced in the mobile mock. No mobile endpoint required and the mobile screen should be removed/hidden. Not a mobile backend gap. | web-scope |
| 2 | Employee Number prefill | Moot — the PDR form is web-scoped (out of mobile scope), so this prefill is the web app's concern. For reference, Member has memberNumber (ALPA #), not an employee number; pilot identity is split across UserInfo + Member (alignment input for AB#1709). | moot · web |
| 3 | Membership Card / Orange Card screens | Linked nav targets (separate nodes, not in this set). Backed by GetMemberAsync → Member { firstName, lastName, airline, classification, memberNumber, mec, lec, … }. Future pass. | noted |
4 · New scaffold controls (presentation)
card-sm (exists) · toggle-settings · Master Form Field · Underline Button — all shared with prior screen sets; no new scaffolds unique to this set.
5 · Summary
- Out of mobile scope: the PDR submission form is scoped to the web application (accidentally surfaced in the mobile mock) — no mobile endpoint; remove/hide on mobile. No mobile backend gap.
- Employee-Number prefill: moot — the PDR form is web-scoped (out of mobile scope). No open mobile confirms.
- Mapped: resource nav (
MenuItem) and PDR prefill (Member).
