KCM Screen Set — Domain-Control Data-Gap Analysis

Scoping of the Known Crewmember (KCM) screen set to map domain controls to data. Documentation only; no presentation work.

Figma file R6hPjBdjSIn6946qTJasUC · nodes 4562:7572 (KCM home) · 4562:7754 (Airlines) · 4562:8249 (Airports / "Airline Policies") · 4562:7955 (Policies search) · 4562:8545 (Filter overlay) · Source: Figma MCP + codebase (RestService, KCM.cs) · Branch docs/kcm-screen-data-gap.

Headline — KCM is data-complete. The two data-bearing screens are already backed by existing endpoints whose models match the Figma 1:1: GetKCMAirlineItemsAsync → KCMAirlineItem (airlineName / pilots / attendants) and GetKCMAirportItemsAsync → KCMAirportItem (airportName / airportCode / checkinNotes / mapUrl). No backend data gaps. The work here is the presentation scaffolds (Master Form Field, check, radio, tab group, Underline Button) plus client-side filter/search — and two small content-source confirms.

KCM home (4562:7572)

Airlines (4562:7754)

Airports (4562:8249)

Filter overlay (4562:8545)

1 · Screens & controls

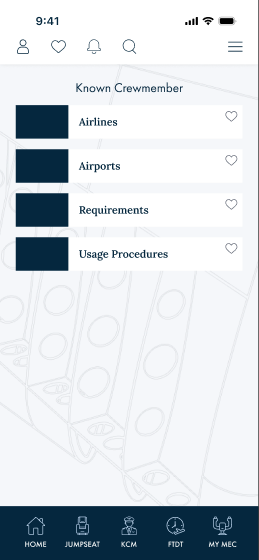

KCM home — "Known Crewmember" + 4 card-sm nav tiles: Airlines · Airports · Requirements · Usage Procedures.

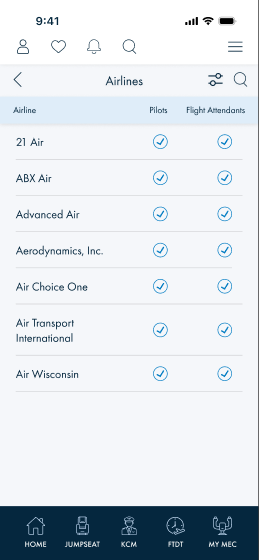

Airlines — header (back · sort/filter · search) + table "Airline / Pilots / Flight Attendants"; rows = Master Form Field (airline name + two checkes).

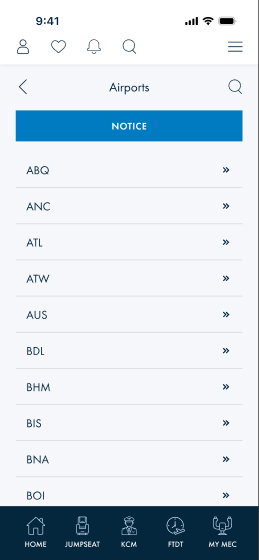

Airports ("Airline Policies" node) — "NOTICE" Primary button + list of airport codes (Master Form Field rows, » → detail).
Policies search — search Master Form Field + list of Master Form Field rows (client-side search).
Filter overlay — radio buttons (Pilots / Flight Attendants) + tab group (hidden) + Primary "Apply" + Underline "Clear".

2 · Data-source mapping

Screen / element	Data needed	Source (exists)	Status	Note
KCM home tiles	title + icon + nav target	`MenuItem` (or static nav)	mapped	Airlines/Airports → data lists; Requirements/Usage Procedures → content (see §3).
Airlines row	airline name · pilots ✓ · flight-attendants ✓	`KCMAirlineItem` { airlineName, pilots, attendants } · `getkcmairlines`	exact	The two check columns map directly to the `pilots` / `attendants` booleans.
Airports list + detail	code · name · check-in notes · map	`KCMAirportItem` { airportName, airportCode, checkinNotes, mapUrl } · `getkcmairports`	exact	List shows code (`»` → detail); detail = checkinNotes + mapUrl.
Filter (Pilots / FA)	selected filter	client-side state	client	Filters the airlines list by the `pilots`/`attendants` flags. No backend.
Search	query	client-side over the loaded list	client	No search endpoint needed for these bounded reference lists.

3 · Confirm items (small)

#	Item	Question	Status
1	Requirements / Usage Procedures tiles	What backs this content — a document/CMS item (`DocumentItem`) or static in-app content? Not KCM list data.	confirm
2	Airports "NOTICE" banner/button	Resolved: the airports list (`GetKCMAirportItemsAsync`) includes a sentinel item with `airportName == "NOTICE"`; the client pulls it out and renders its `checkinNotes` as the notice. Existing behavior — no change.	resolved
3	Airline eligibility semantics	Resolved: `KCMAirlineItem.pilots` / `attendants` (bools) are the eligibility flags (true = eligible) from `GetKCMAirlineItemsAsync`.	resolved

4 · New scaffold controls (presentation — for the component library, not backend)

Control	Figma	KCM use
Master Form Field (`input_with_icons`)	5236:15830…	Reusable (85 uses). Variants here: table row (label + checks), search input, list row (label + `»`).
check	5236:15834	Eligibility indicator (Pilots / FA).
radio button	0:91 / 0:95	Single-select filter option.
tab group	0:89	Segmented control (hidden in the filter; present for variants).
Underline Button	0:107	Text button ("Clear").
nav-control icons	back · i-search · btn-sort&filter · i-close	Header / overlay chrome.

These are scaffold items for the architecture/component track — no data implications. Master Form Field is the high-leverage one (85 uses across the app).

5 · Summary

Backend data gaps: none for KCM core data — airlines & airports already map 1:1 to existing endpoints/models.
Resolved: Airports "NOTICE" (airportName == "NOTICE" sentinel + checkinNotes) · eligibility (pilots/attendants bools) · Usage Procedures (bundled PDF + MenuItem). Minor confirm: Requirements tile content source.
Client-side: filter, search, sort.
Presentation backlog: Master Form Field (+check / radio / tab group / Underline Button) scaffolds.

Tracked in screen-mapping.html.
