← Component Specifications

MEC Pilot Group Lists — Design Gap

Work item AB#2450 Epic AB#1821 Status Awaiting design

The gap

The Blazor MEC surface is a scaffold wearing live-app clothes. /mec/events, /mec/hotels and /mec/reps each render a hardcoded list declared as a private record array in the page's own code-behind — six fictional events, five Chicago-area hotels with invented star ratings and nightly rates, six fictional officers with @ual.alpa.org addresses. No data service is called. The native equivalents — PilotGroupEventsPage, PilotGroupHotelsPage, PilotGroupRepresentativesPage — all show live member data.

None of the three mock lists has a Figma frame. The Design-Source Gap Inventory live-verified this against all four known Figma file keys: no “Events” frame anywhere, the only “hotels” match a name-matching false positive (the HOTEL COMMITTEE detail page), and “REPRESENTATIVES” only as a 2–3 row preview inside composite MEC pages. These screens were scoped by the migration guide as functional ports of the legacy Pilot Group pages — “MEC” is the Blazor-era rename of that concept — so no UI-Refresh design was ever commissioned for them.

/mec/committees is the different case: it is Figma-backed (node 20900:2432) but the shipped page diverged from the frame, and the level below it — the native committee-details screen, PilotGroupCommitteDetailsPage, with per-member contact cards — exists in neither Figma nor Blazor. The Blazor committee rows carry chevrons, but each row's href is /mec/committees: the page it is already on.

What ships today

ScreenNative (XAML)Blazor (this build)
Events PilotGroupEventsPage — live feed with unread badges (40 unread at capture); one page serves MEC and LEC via ?Scope= MecEventsPage.razor “Events” — six hardcoded MecEvent records in the code-behind, no data service, MEC only
Hotels PilotGroupHotelsPage — live list grouped by airport IATA code; entry appears only for members flagged Is_MEC_Hotel_List_User MecHotelsPage.razor “Pilot Hotels” — five hardcoded PilotHotel records with star ratings and nightly rates the native data does not carry; no preference gate
Reps PilotGroupRepresentativesPage — live officer cards with call and mail actions; MEC and LEC via ?Scope= MecRepsPage.razor “Representatives” — hardcoded MEC Officers and Council 12 sections, fictional names, mailto links only
Committees PilotGroupCommitteePage list → PilotGroupCommitteDetailsPage detail: cards per member with role, name, direct phone/email, call and mail actions MecCommitteesPage.razor “Committees” — Standing/Special sections with Chair lines; rows carry chevrons but self-link to /mec/committees. No drill-down level exists.

The gap is wider than these four routes. The native pages are scope-parameterised — PilotGroupEventsPage?Scope=LEC is the same file as the MEC version — so the Blazor routes, which hardcode MEC, cover half of what the native pages serve. The LEC side, the preference-gated entries and the feed-driven list contents are catalogued in My Pilot Group → MEC Composition Coverage; this page documents only the design gap on the four MEC lists.

Side by side

Captured 2026-08-12 on an iPhone 17 Pro Max simulator (iOS 26.4), build commit 34737cb4, against live data. Native screens were reached the way a member reaches them: Home → My Pilot Group → the list entry.

MEC Events

Native (XAML, shipped today)

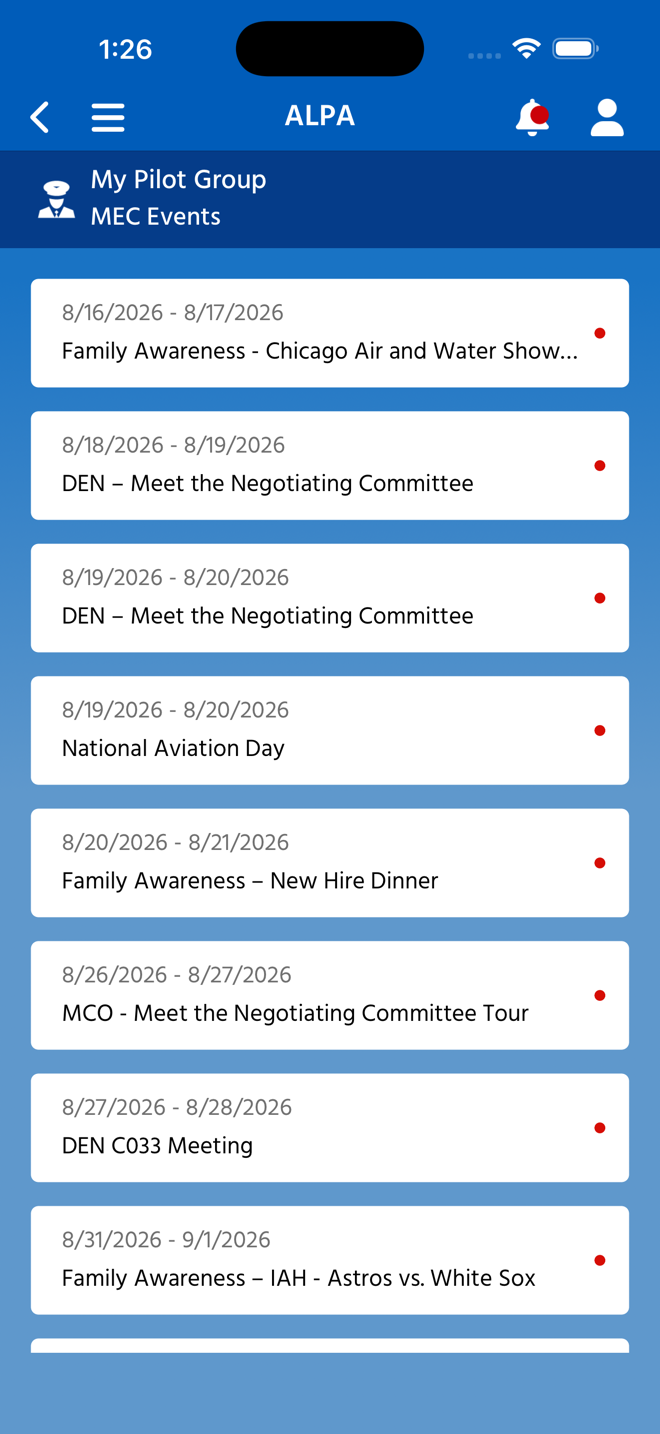

Native XAML MEC Events page — live event feed with unread badges

PilotGroupEventsPage, live feed Real MEC events from the feed, with unread badges — 40 unread at capture. The same page serves LEC events through its Scope query property.

Blazor (this build, for review)

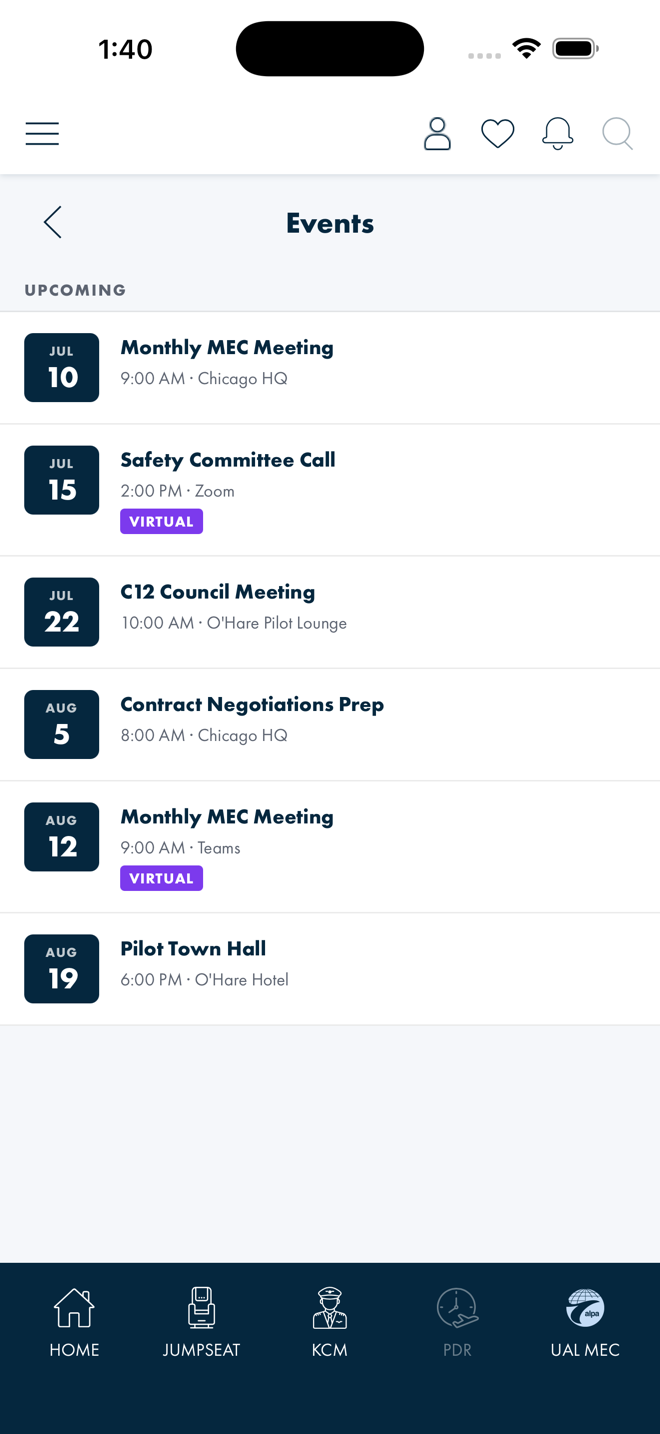

Blazor /mec/events page — hardcoded scaffold event list

MecEventsPage — hardcoded scaffold Title bar reads “Events”. The six rows are a private MecEvent record array in MecEventsPage.razor.cs — no data service is injected. Date-box rows, virtual/in-person markers and locations are all invented scaffold content.

MEC Hotels

Native (XAML, shipped today)

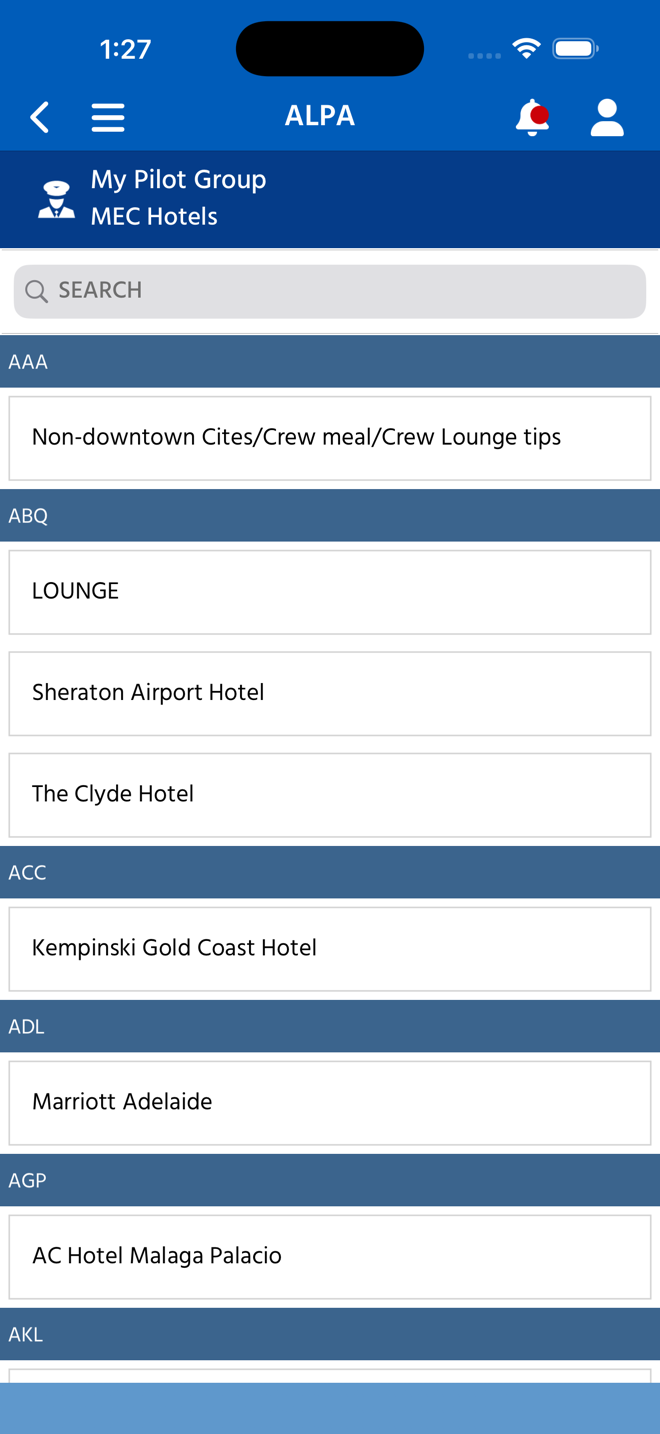

Native XAML MEC Hotels page — live hotel list grouped by airport IATA code

PilotGroupHotelsPage, live and gated Live hotel data grouped by airport IATA code. The entry itself is preference-gated — it appears in My Pilot Group only because the capture account carries Is_MEC_Hotel_List_User.

Blazor (this build, for review)

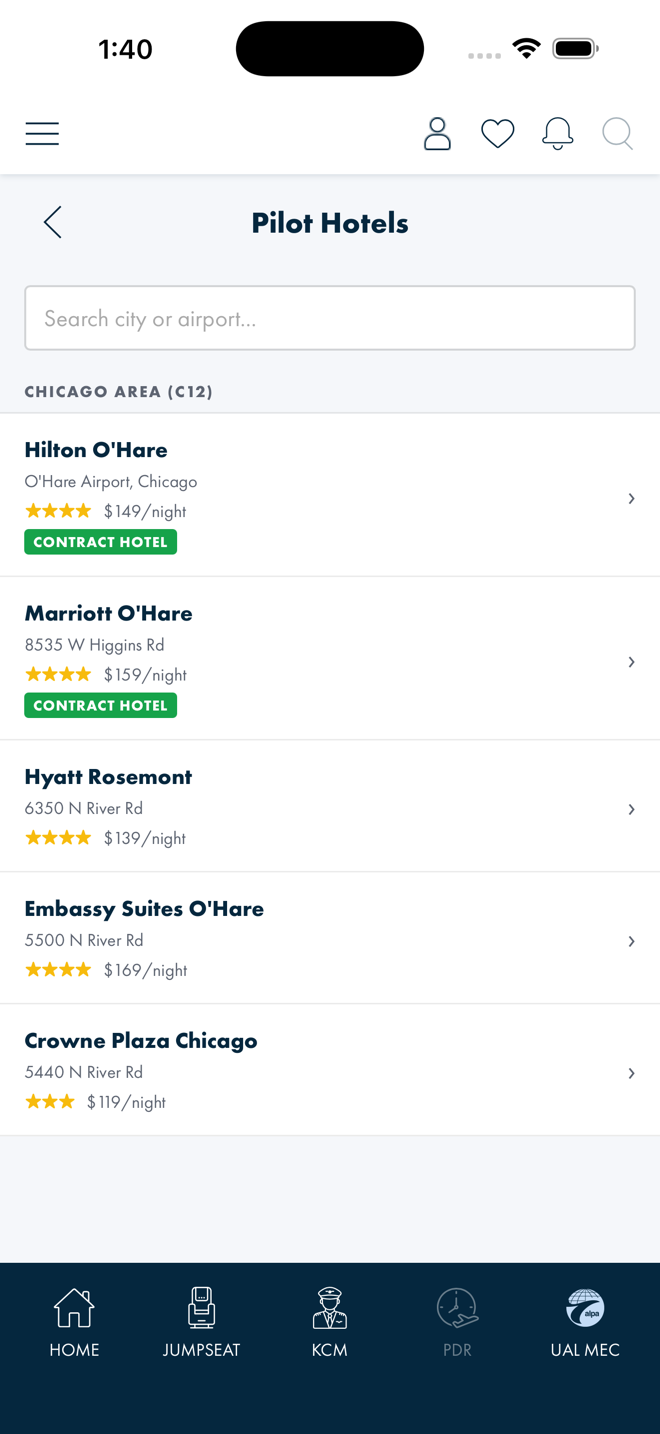

Blazor /mec/hotels page — mock Chicago-area hotel cards

MecHotelsPage — mock cards Title bar reads “Pilot Hotels”. Five hardcoded Chicago-area hotels from MecHotelsPage.razor.cs, carrying star ratings and nightly rates — fields the native hotel data does not have. No IATA grouping, no preference gate.

MEC Reps

Native (XAML, shipped today)

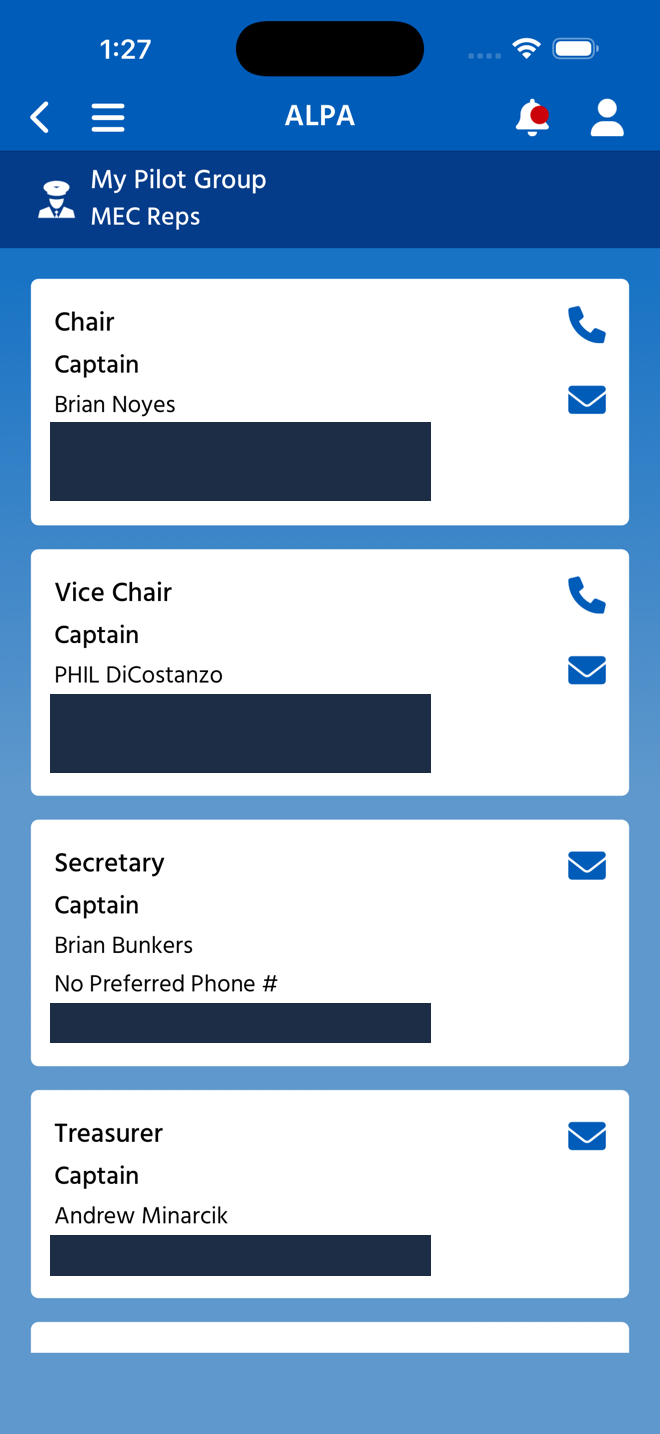

Native XAML MEC Representatives page — live officer cards, contact lines redacted

PilotGroupRepresentativesPage — contact lines redacted Live officer cards with call and mail action icons. The officers' direct phone and email lines are redacted in this capture — the live screen renders real members' contact details.

Blazor (this build, for review)

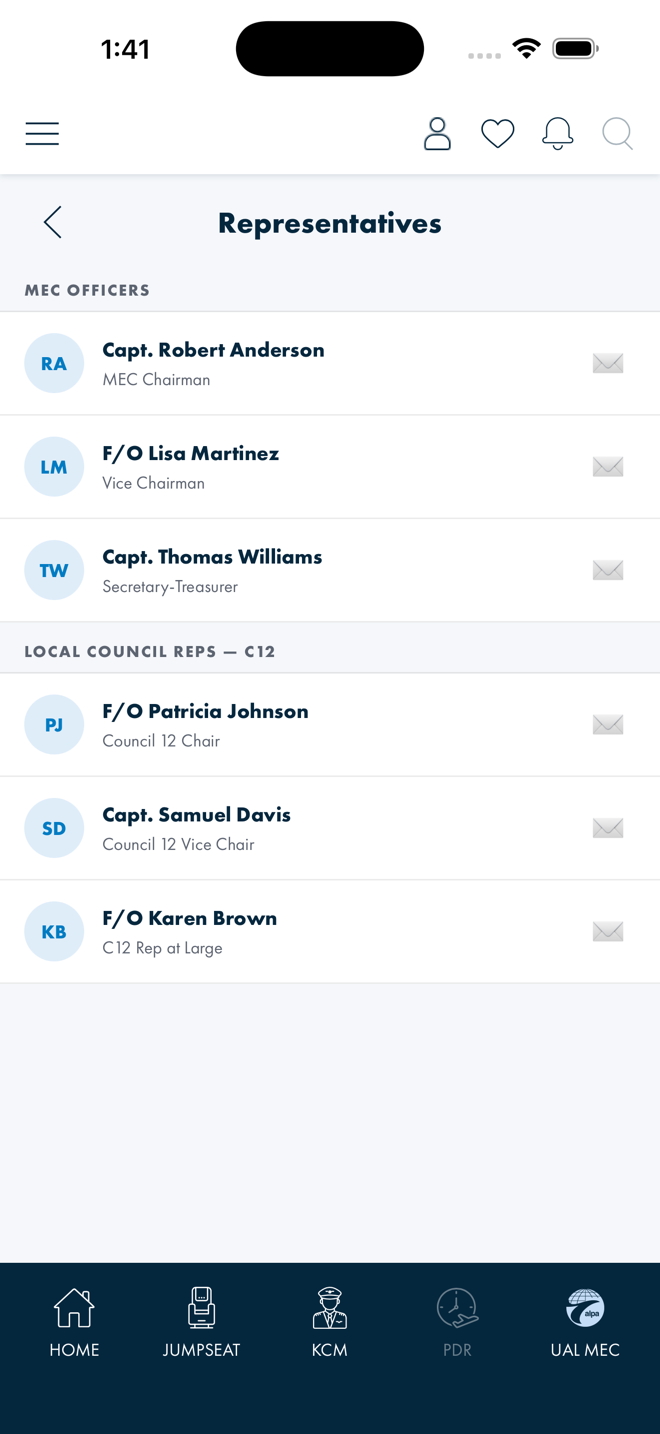

Blazor /mec/reps page — mock MEC Officers and Council 12 sections with fictional names

MecRepsPage — fictional roster Title bar reads “Representatives”. MEC Officers and Council 12 sections from two hardcoded record arrays in MecRepsPage.razor.cs — the names are fictional, the addresses invented. Mail links only; native's call action has no counterpart.

Committee Details

Native (XAML, shipped today)

Native XAML MEC committee details page — member cards with roles, contact details redacted

PilotGroupCommitteDetailsPage — contact lines redacted Reached from My Pilot Group → MEC Committees → a committee. Cards per member with role, name and direct phone/email, each with mail and call actions. This capture predates the 2026-08-12 session; contact details are redacted.

Blazor (this build, for review)

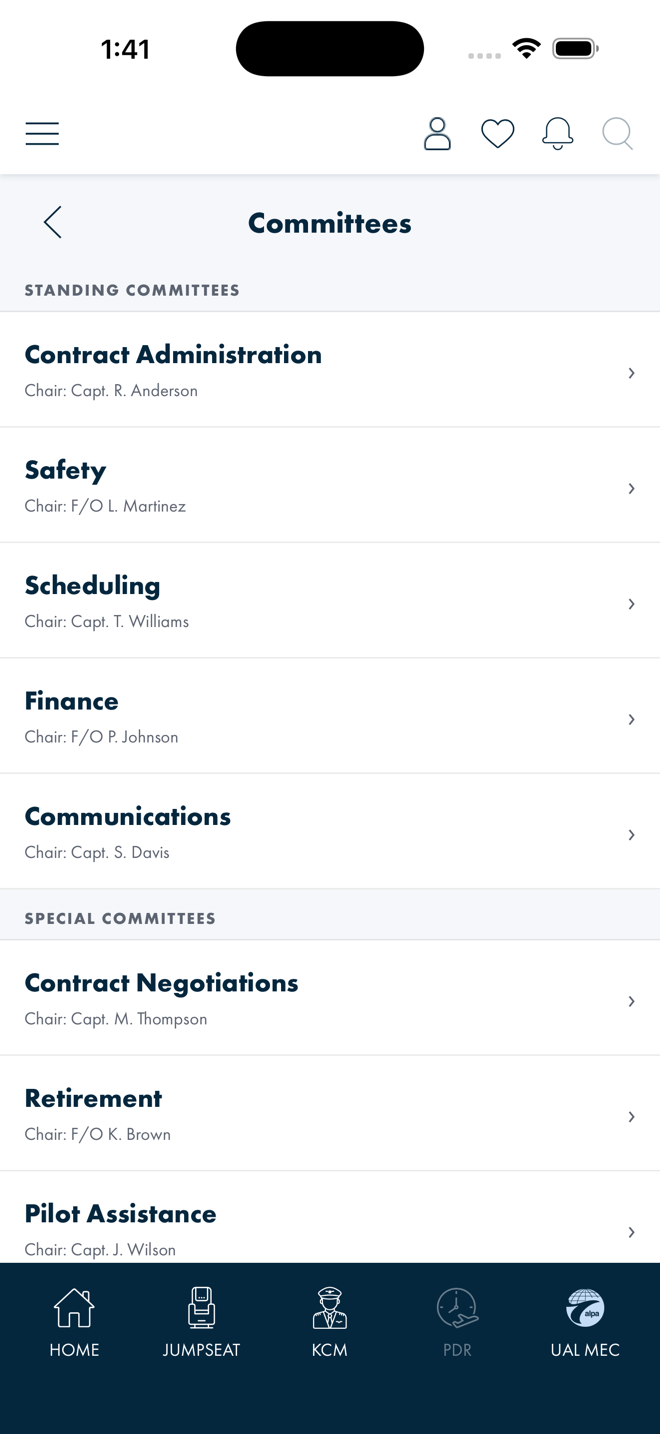

Blazor /mec/committees page — flat Standing and Special committee list whose rows self-link

MecCommitteesPage — flat list, no level below Standing and Special sections with a Chair line per committee. Every row carries a chevron, but its href is /mec/committees — the page it is on. There is no committee-detail route, expander or modal; the native detail level is entirely absent.

Verification

Walked live on an iPhone 17 Pro Max simulator, build 34737cb4, signed-in member account:

native Home -> My Pilot Group -> MEC Events -> PilotGroupEventsPage (live feed, 40 unread) native Home -> My Pilot Group -> MEC Hotels -> PilotGroupHotelsPage (grouped by IATA; entry present because account has Is_MEC_Hotel_List_User) native Home -> My Pilot Group -> MEC Reps -> PilotGroupRepresentativesPage (live officer cards; capture redacts phone/email lines) blazor /mec/events "Events" hardcoded list, no data service blazor /mec/hotels "Pilot Hotels" 5 mock hotel cards blazor /mec/reps "Representatives" mock officers + Council 12 (fictional names) blazor /mec/committees "Committees" Standing/Special sections; row href self-links to /mec/committees

The mock data was confirmed in source, not inferred from pixels: the record arrays live in MecEventsPage.razor.cs, MecHotelsPage.razor.cs and MecRepsPage.razor.cs, and the committee rows' self-link is in MecCommitteesPage.razor. The Figma absence for events, hotels and reps is the inventory's live MCP search across all four file keys, not docs-silence.

Open questions

#ForQuestion
1DesignShould the three unframed lists (events, hotels, reps) get one consistent MEC sub-page list template, or three separate designs? The gap inventory recommends bundling them into a single capture request precisely because a design pass would likely produce one template.
2DesignCommittees: adopt the shipped two-section/Chair-name shape, or rebuild to the Figma frame (node 20900:2432: flat list, heart toggles, “VOLUNTEER OPPORTUNITIES” and “ALL MEC COMMITTEES” CTAs)? The shipped page is a straight port of the legacy list; the frame is a newer UI-Refresh design nobody has applied.
3DesignDoes the committee-detail level survive? Native drills into per-member cards with call and mail actions; Blazor has no level below the list but its rows still present as navigable. Either design the detail screen or make the rows non-interactive — the current chevron-that-self-links is the same defect the comms detail page documented.
4ProductLEC: the native events/reps pages serve LEC through ?Scope=; the Blazor routes hardcode MEC. Does the MEC composition cover LEC via a scope parameter, parallel routes, or is LEC explicitly out of scope for the refresh?
5EngineeringMEC Hotels is preference-gated natively (Is_MEC_Hotel_List_User, from the member service). The Blazor page has no gate — tracked under AB#2405. Should the gate land with the redesign or before it?
6DesignWhat belongs on a hotel row? The mock invents star ratings and nightly rates; the native data is hotels grouped by airport with committee-negotiated details. A design built from the mock would specify fields the feed cannot fill.
