MEC Screen — Domain-Control Data-Gap Analysis
First-pass scoping of the MEC screen to identify the domain controls it uses and the data each needs — flagging gaps against the current models/API for the architecture & backend teams. Documentation only; no presentation work.
Headline. MEC reuses the Home controls but adds three: Secondary button,
card-btn (3-up icon tiles), and card-md (text content card). It surfaces one new
backend need Home did not: a favorite/bookmark affordance (heart on card-btn, card-md and the
media card-lg) with no current data source. The "new" count badge on card-md is a
client-side computation (local last-seen diff'd against the API payload), not a backend field.
Figma — MEC (4684:7914)

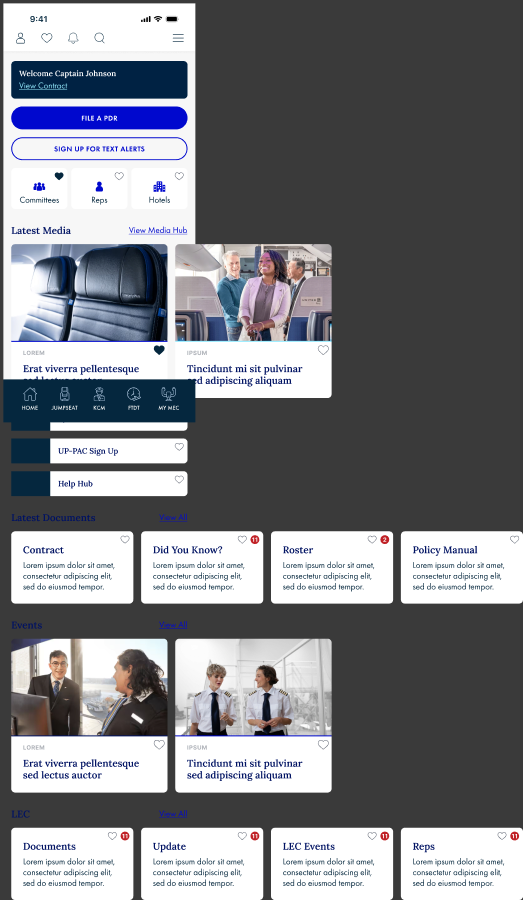

Screen structure (top → bottom)
- Pilot Card — "Welcome Captain Johnson" + View Contract
- Primary button — "File a PDR"
- Secondary button — "Sign up for text alerts" new variant
- card-btn row (3-up) — Committees / Reps / Hotels new
- Feed → card-lg — "Latest Media" + View All (image media, heart)
- card-sm ×3 — UP-PAC Sign Up, Help Hub, …
- Feed → card-md — "Union Documents" (Contract / Did You Know? / Roster / Policy Manual) new
- Feed → card-lg — media (2-up)
- Feed → card-md — Documents / Update / LEC Events / Reps
1 · Control inventory
| Control | Status | Figma | Reused from |
|---|---|---|---|
| Pilot Card (welcome) | exists | 0:255 | Home |
| Primary button | exists | 0:259 | Home (Button) |
| Secondary button | new variant | 0:263 | Button + style variant |
| card-btn (3-up icon tile) | new | 4737:13038 | — |
| Feed (horizontal scrolling) | exists | 0:292… | Home (Carousel) |
| card-lg (media feed item) | exists | 0:297 | Home — but heart now shown |
| card-sm (nav row) | exists | 0:321 | Home |
| card-md (text content card) | new | 4718:11125 | — |
2 · New controls — data shape (from Figma masters)
card-md (250×148, text content card)
- title — Lora SemiBold 20 (
#05273e) - description — Futura PT Book 18, ~2 lines (clamped)
- favorite — heart (top-right)
- "new" badge — red (
#c02126) pill with a count (e.g. "11") - no image, no eyebrow; whole card taps → detail/navigation
card-btn (116×84, 3-up tile)
- icon — glyph (e.g. committee/reps/hotels)
- label — Futura PT Book 18, centered (clamped)
- favorite — heart (top-right)
- whole tile taps → navigation
Secondary button (361×47)
- Same data as Primary button (label + action) — differs only by style variant (outlined).
3 · Data-gap analysis
Per-field mapping against today's models (MenuItem, DocumentItem, UserInfo) and the
data layer. "Source" = where the value would come from; gaps are what's missing.
| # | Need | Used by | Candidate source | Status | Note |
|---|---|---|---|---|---|
| 1 | Favorite / bookmark (per-item is-favorite + toggle) | card-btn, card-md, media card-lg | — (none) | gap | No favorites API today. The heart is now shown on all favoritable controls including Home (D31, 2026-06-26). MEC shows it across 3 controls. Needs: IsFavorite per item, a toggle endpoint, and a "my favorites" read. |
| 2 | "New" count badge (count of new items) | card-md | Client-side (local last-seen vs API payload) | client | The red pill count is computed on-device by diffing the API result against locally-stored last-seen state — not a backend field. Backend only needs stable item IDs (ideally an updated/published timestamp) to diff against. Not a backend data gap. |
| 3 | card-md description / summary | card-md | DocumentItem (+ Description) |
gap | Text cards need a short description. Re-confirms the Description gap already flagged for richer tiles — one nullable field add to the content item. |
| 4 | card-btn icon + label + nav | card-btn | MenuItem (Title, Glyph/ImageSource, Path) |
mapped | Same as Home 3-up. MenuItem covers it (favorite is the only add — see #1). |
| 5 | Secondary-button style variant | Secondary button | presentation, or a Variant field if buttons are backend-driven |
confirm | If the button list is API-driven, add a primary/secondary style attribute; otherwise presentation-only. |
| 6 | Feed/section config (titles + membership) | all feeds | DocumentItem Scope / Category / Grouping |
mapped | Section grouping pattern established on Home; "Latest Media" / "Union Documents" map to scope+category queries. Confirm media vs document item types. |
| 7 | card-lg media item (image, eyebrow, title) | media feed | DocumentItem / media content |
mapped | As Home card-lg; add favorite (#1). Confirm whether "media" is a distinct content type with an image URL. |
4 · Open questions for backend / architecture
- Favorites: is a favorite/bookmark capability planned? It now spans buttons, tiles and content cards — needs a shared per-item flag + toggle, not a per-control solution.
- New/unread counts: handled client-side (local last-seen diff'd against the API). Backend ask is only that list items carry stable IDs (ideally an updated/published timestamp) so the client can compute "new" locally — not a server-tracked count.
- Content description: confirm adding a nullable
Description/summary to the content item that backs card-md (and richer tiles). - Media vs documents: is "Latest Media" a separate media content type (with image) or DocumentItem with an image field?
- Buttons: are the Primary/Secondary buttons backend-driven (needing a variant field) or fixed in the screen definition?
